Faster flanged valve insertion

Post Reply
VicenteLG
Posts: 4
Joined: Mon Jun 22, 2020 4:11 pm

Faster flanged valve insertion

Post by VicenteLG »

Hi,

How can we insert a flanged valve into the pipeline with the pipe flanges inserted at once?. during model creation we need to insert flanged ASME valves but can't find how to speed the process in 4.84 R1 START-PROF.

Thank you in advance,
User avatar
Alex Matveev
Posts: 14
Joined: Mon Jun 22, 2020 12:48 pm
Contact:

Re: Faster flanged valve insertion

Post by Alex Matveev »

First way:

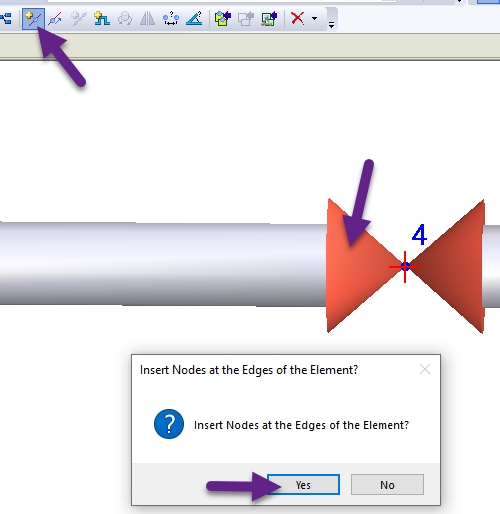

Add nodes on the valve ends

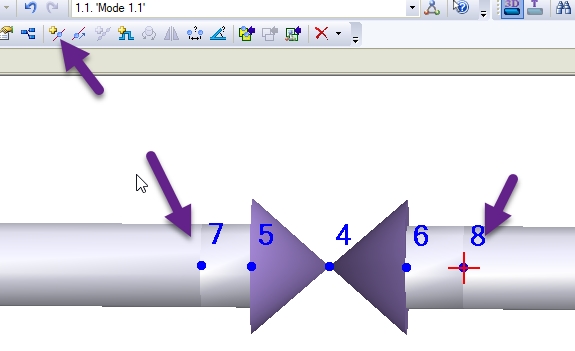

add additional nodes near the valve

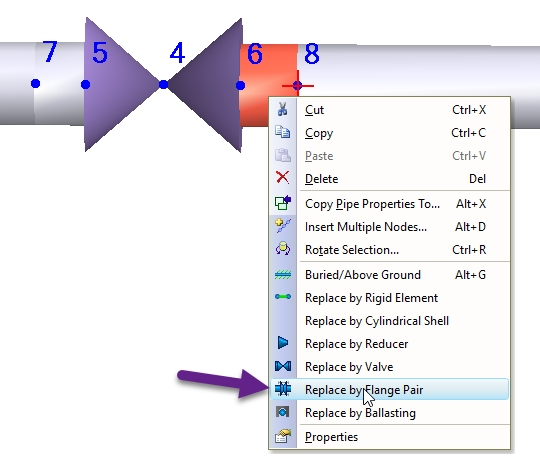

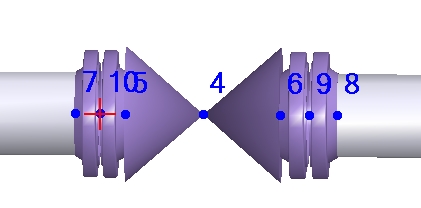

replace the pipes by flanges

the second way is just to specify the valve length and weight including all 4 flanges. It is simpler
